Description
BEA’s LED SIGNAL MODULAR LIGHTS and audible alarm
series is part of a portfolio of warning indication products,
including BEA activation, safety and presence sensors. These
signal lights integrate seamlessly into industrial automation
and vehicle flow management applications.
LED SIGNAL MODULAR LIGHTS offer customizable
configurations with “build-your-own” lighting elements that
share a common base and bracket. These LED signal units
are available in red, green, yellow and an audible alarm cap
and can be stacked in a tower configuration with up to six
modules.

Technical Specifications
-Supply Voltage:  12 – 30 VDC
-Indicator Response Time
-Off Response:  150 μs @ 12 – 30 VDC
-On Response:  180 mSec @ 12 VDC; 50 mSec @ 30 VDC
-LED Colors:  Red, Green, Yellow
-Light Flash Rates:  1.5 Hz ±10% and 3 Hz ±10%
-Audible Alarm:  2.6 KHz ±250 Hz oscillation frequency; maximum intensity 92 dB @ 39.6 in
-Audible Adjustment:  Rotate the alarm cover; Open to closed is 8 db
-Connector:  78” 8-wire integral cable
-Operating Temperature:  -40 – 122 °F 95% @ 122 °F maximum relative humidity(non-condensing)
-Degree Of Protection:  NEMA 4 / IP65
-Norm Conformity:  CE, UL 1598 Listed and UL 8750 Listed
-Dimensions

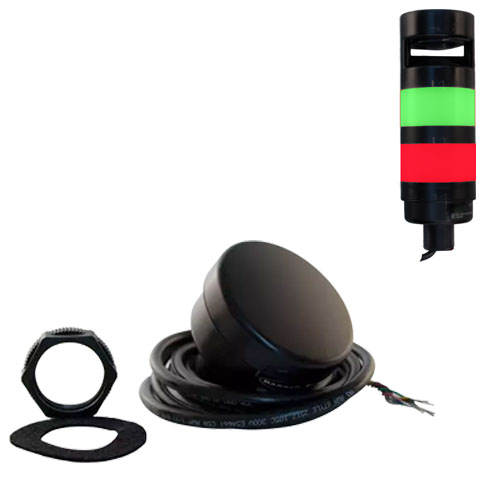

Base:  2.75 in ø × 1.38 in (H)
Light Segment:  2.75 in ø × 2.38 in (H)
Audible Segment:  2.75 in ø × 2.75 in (H)
