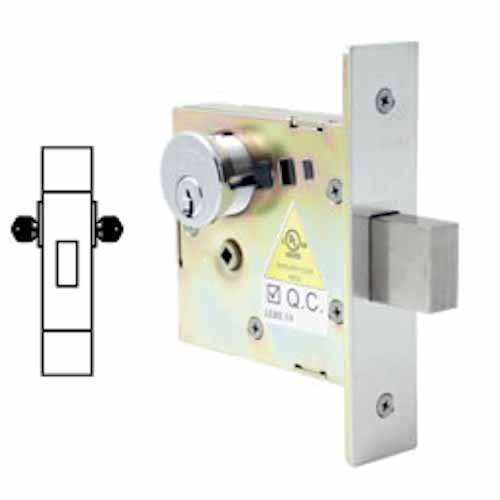

SM4628 Cal-Royal Deadbolt Mortise, Small Case Double Cylinder
Double Cylinder - Deadbolt operated by key on either side.
Any door in commercial or institutional buildings where the best auxiliary Mortise deadbolt locks are required.
Meets The Buy American Act
Lifetime Warranty
Double Cylinder - Deadbolt operated by key on either side.
Any door in commercial or institutional buildings where the best auxiliary Mortise deadbolt locks are required.
Meets The Buy American Act
Lifetime Warranty
Backset: 2 3/4" (70 mm)
Door Range: 1 3/4" (44 mm), available to 2 1/4"(57 mm).
Specify thickness if other than 1 3/4"
Deadbolt: 1" (25 mm) throw, stainless steel, can withstand cutting or sawing
Cylinder: 1 1/8" Mortise cylinder Schlage "C"(standard). Otherwise specify
Heavy Gauge Steel Lock Case
Brass Deadbolt with Hardened Steel Inserts 1" Throw
Lock Case:3 15/16" x 3 5/8" x 1" (100 mm x 92 mm x 25 mm)
Faceplate: 1 1/4" x 5 19/32" x 7/32" (32 mm x 142 mm x 6 mm)
Strike: 1 1/8" x 3 1/2" (29 mm x 89 mm)
ANSI 156.13
Exceeds 800,000 cycles
SM4628 Cal-Royal Deadbolt Mortise, Small Case Double Cylinder
- Brand: Cal-Royal
- Product Code: SM4628
-
$86.00
