*Actual product and finish may vary

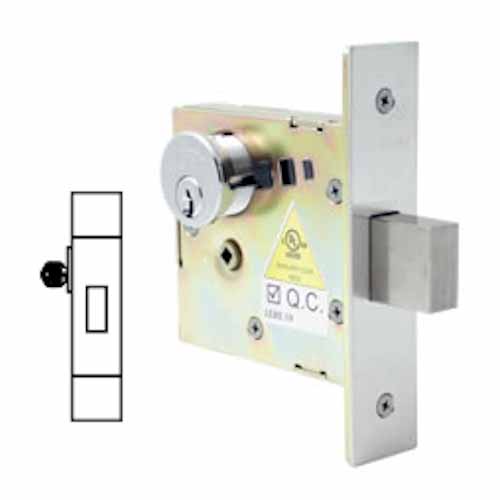

SM4638 Cal-Royal Deadbolt Mortise, Small Case Classroom, for any
door in commercial or institutional buildings where the best auxiliary Mortise deadbolt locks are required.
Classroom Lock - Deadbolt thrown or retracted by key from outside. Inside cylinder turn retracts deadbolt but cannot project it.
Meets The Buy American Act
Lifetime Warranty
door in commercial or institutional buildings where the best auxiliary Mortise deadbolt locks are required.
Classroom Lock - Deadbolt thrown or retracted by key from outside. Inside cylinder turn retracts deadbolt but cannot project it.
Meets The Buy American Act
Lifetime Warranty
Backset: 2 3/4" (70 mm)
Door Range: 1 3/4" (44 mm), available to 2 1/4"(57 mm).
Specify thickness if other than 1 3/4"
Deadbolt: 1" (25 mm) throw, stainless steel, can withstand cutting or sawing
Cylinder: 1 1/8" Mortise cylinder Schlage "C"(standard). Otherwise specify
Heavy Gauge Steel Lock Case
Brass Deadbolt with Hardened Steel Inserts 1" Throw
Lock Case:3 15/16" x 3 5/8" x 1" (100 mm x 92 mm x 25 mm)
Faceplate: 1 1/4" x 5 19/32" x 7/32" (32 mm x 142 mm x 6 mm)
Strike: 1 1/8" x 3 1/2" (29 mm x 89 mm)
SM4638 Cal-Royal Deadbolt Mortise, Small Case Classroom
- Brand: Cal-Royal
- Product Code: SM4638
-
$86.00
