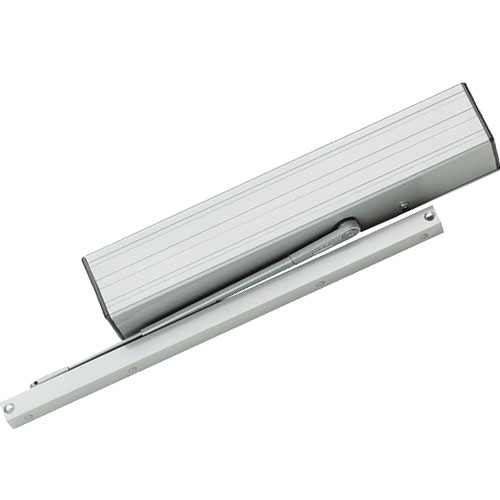

LCN 4841-CUSH Push Side Pneumatic Auto Equalizer.

Adjustable Size 1 thru 5(shipped set at 3) The Auto Equalizer Series are a pneumatically powered multi-door solution. These quiet operators are designed for primarily manual applications that occasionally require automatic opening.

Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finish: 689 - Aluminum

The 4840 Auto Equalizer™ is LCN’s pneumatically powered multi-door solution. This low-energy automatic operator
provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications
that occasionally require automatic opening.

Features
Certifications ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Body
construction
• Cast iron body
• Full complement bearing
• 1-1/2" diameter piston
• 3/4 " diameter double heat treated pinion journal
Fluid All weather fluid

Handing Non-handed

Size Adjustable spring size 1-5

Warranty 2 years

Cover Metal cover (MC)

Fasteners Adjustable spring size 1-5

Mounting Parallel arm (push side)

Arms Extra duty, standard; cush-n-stop and spring cush-n-stop, optional

Finish: 689 - Aluminum
