*Actual product and finish may vary

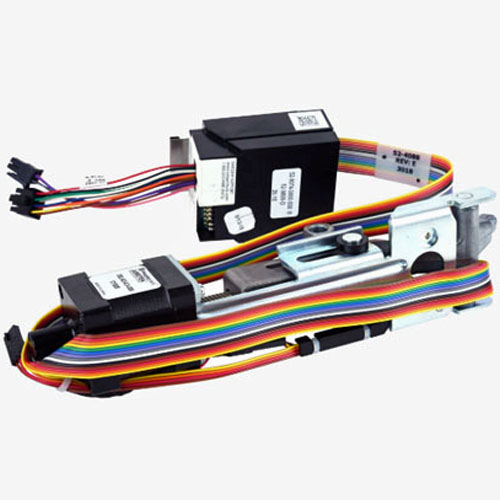

55-M56A Sargent electric latch retraction retrofit motor kit with an integrated request-to-exit signal switch. It is designed to upgrade standard mechanical panic hardware into motor-driven electronic access control systems. Compatibility: Works with Sargent 80 Series (manufactured after 2006) and P Series exit devices (including rim, mortise, and vertical rod designs). Not compatible with FM8700 series exit devices.
Rail Length Options:E (24"–32" doors) - No cutting required for 32” door
F (33"–36" doors) - No cutting required for 36” door
J (37"–42" doors) - No cutting required for 42” door
G (43"–48" doors) - No cutting required for 48” door
It is designed to convert standard mechanical push rails on commercial exit devices into motorized access-controlled
Specifications & Features
- Power Needs: Requires a 24VDC regulated/filtered power supply providing at least 1A.
-Electrical Draw: Draws 0.6A during initial retraction and 0.25A to maintain the dogged/hold position.
-Built-in Controls: Features a digital retraction timer adjustable from 0 to 20 seconds (factory set to 5 seconds).
-Included Parts: Motor bracket assembly, motor controller, ribbon wiring, and fasteners.
55-M56A Sargent Electrified Latch Retraction Motor Kit
- Brand: Sargent
- Product Code: 55-M56A
-
$979.00
