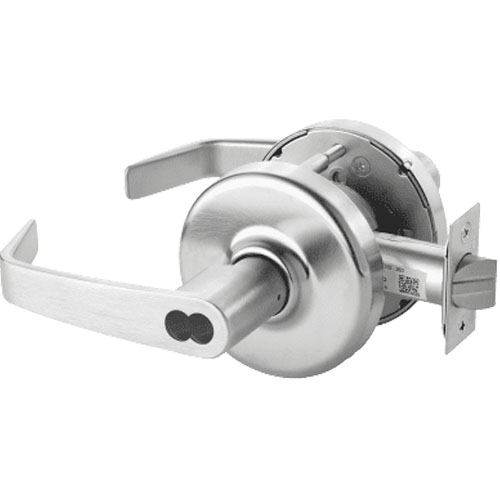

CLX3300 Series Cylindrical Lock
Designed to secure high-traffic spaces where aesthetics are important,
the CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is manufactured
of the highest-quality materials to provide durability, strength, and reliability.
It is also available in all industry-standard finishes and a variety of decorative
levers, so you’ll never have to sacrifice style for strength. And, it supports all
cylinder formats—from fixed to interchangeable cores, making the CLX3300
Series the ideal choice for new construction and retrofit projects.

FEATURES
• Prevents entry and maintains egress against more than
3,100 in-lb locked lever torque (2.6x ANSI/BHMA
A156.2 requirements)
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA
A156.2 requirements)
• Ensures latch retraction with 100lb preload (2x ANSI/
BHMA A156.2) while maintaining operation in warped
doors or doors with latch bind
• Prohibits entry after more than 100 vertical impacts
(20x ANSI/BHMA A156.2 requirements)
• Innovative push/turn button design prevents damage
from door stops and walls
• 26 mechanical and electromechanical functions offered
• Available in 14 finishes with multiple lever designs
including multiple decorative levers and behavioral
health trim
• Optional Microshield® antimicrobial coating available
• Lockbody design supports all cylinder formats - from
fixed to interchangeable core

BENEFITS
DURABILITY: Provides maximum resistance to vandalism
and malicious attacks
STRENGTH: Certified above & beyond testing to withstand
heavy traffic
DESIGN: Complements the look of any style
EFFICIENCY: Minimizes inventory stocking needs
EASE: Simplifies installation in new or retrofit applications
COMPATIBILITY: Integrates with new or existing
key systems
