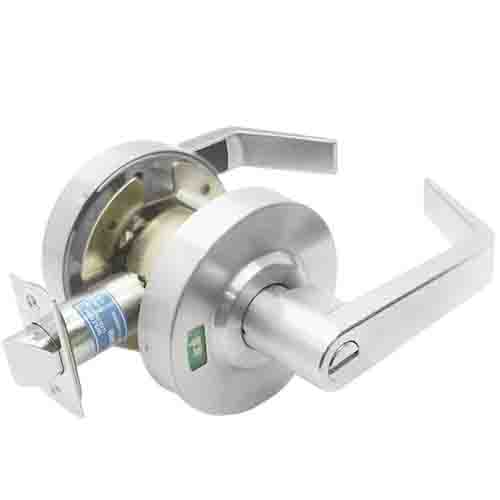

INDCGN-20 Cal-Royal Genesys Privacy Indicator Lever Lock. Non-Clutch
Privacy Lock - Latch bolt operated by lever from either side.
Outside
lever is locked by push button inside and unlocked by emergency slot release
outside. Turning inside lever or closing door releases push button.
Red (IN USE) and Green (VACANT) Indicator, with Lock or Unlock Icon
Meets The Buy American Act
3 Hour Fire Rated
BHMA Certified
Lifetime Warranty
Features
Full length 4 ¾” lever handle with ⅜” return.
Rose diameter 3 9/16”. Non-handed levers.
Concealed mounting screws.
-Applications
For offices, schools, hospitals, corrosive environments,
commercial and public buildings.
-Door Ranges
For 1 ⅜” to 1 ¾” thick doors. Specify door thickness upon ordering.
-ANSI Standards
Meets ANSI / BHMA A156.2 Series 4000, Grade 1 requirements.
-StrikesSTRIKES
ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.
-Trim
Thru-bolted assembly through door with separate spring cage for each lever.
-Housing
Cold Rolled Steel and Zinc Dichromate finish for rust resistance
with precision cast steel retractor. 2 ⅛” diameter bore.
-Latch Faceplate
Standard 2 ¼” x 1 ⅛” for 2 ¾” backset.
Optional 2 ¼” x 1” for 2 ⅜” backset.
-Latch Options
2 ¾” standard, brass with ½” throw. 2 ⅜”, 3 ¾” & 5” backset optional.
GND750 deadlatch reversible for flat and beveled door.
¾” throw anti-friction deadlatch for pair of fire doors.
-Emergency Slot on the outside trim to unlock door in case of emergency.
Full length 4 ¾” lever handle with ⅜” return.
Rose diameter 3 9/16”. Non-handed levers.
Concealed mounting screws.
-Applications
For offices, schools, hospitals, corrosive environments,
commercial and public buildings.
-Door Ranges
For 1 ⅜” to 1 ¾” thick doors. Specify door thickness upon ordering.
-ANSI Standards
Meets ANSI / BHMA A156.2 Series 4000, Grade 1 requirements.
-StrikesSTRIKES
ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.
-Trim
Thru-bolted assembly through door with separate spring cage for each lever.
-Housing
Cold Rolled Steel and Zinc Dichromate finish for rust resistance
with precision cast steel retractor. 2 ⅛” diameter bore.
-Latch Faceplate
Standard 2 ¼” x 1 ⅛” for 2 ¾” backset.
Optional 2 ¼” x 1” for 2 ⅜” backset.
-Latch Options
2 ¾” standard, brass with ½” throw. 2 ⅜”, 3 ¾” & 5” backset optional.
GND750 deadlatch reversible for flat and beveled door.
¾” throw anti-friction deadlatch for pair of fire doors.
-Emergency Slot on the outside trim to unlock door in case of emergency.
INDCGN-20 Cal-Royal Indicator Privacy Lever Lock
- Brand: Cal-Royal
- Product Code: INDCGN-20
-
$132.43
