The traditional line of Sargent overhead Holders & Stops is unsurpassed in the industry in regards to aesthetic details and quality. The 590 heavy-duty surface applied and 690 concealed heavy-duty series are designed for use on exterior doors and highly abused interior doors. The 1530 concealed series and the 1540 surface applied series are designed for use on interior doors.

All stops/holders are templated and installed for a particular degree of opening ranging between 85° to 110°. All SARGENT overhead holders/stops include a heavy duty spring designed to gradually absorb impact forces over a 3° to 9° of opening. When using holders and stops on doors opening against a wall or back to back, they should be templated/installed to eliminate the trim from coming into contact with the walls or each other.

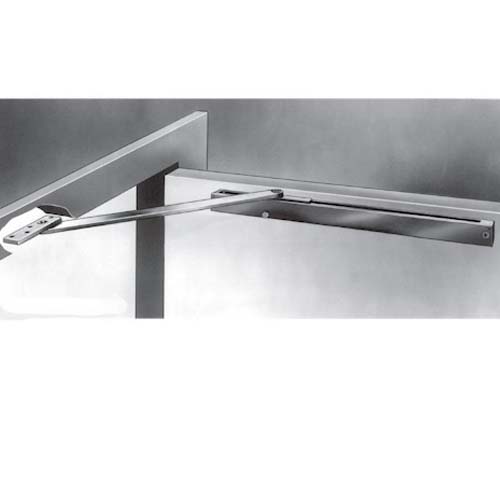

590 Series

• Surface application for exterior and interior single acting doors

• Two types to choose from:

– “H” Holder; Stops and Holds doors open

– “S” Stop; Stops door only

• All holders/stops are installed for a particular degree of hold open or stop ranging from 85° to 110°

ANSI A156.8 Grade 1

590H Series BHMA Certified to CO2511

590S Series BHMA Certified to CO2541

UL Classified

• SARGENT 590 Series stops are UL10B & 10C classified by Underwriter Laboratories as Miscellaneous Fire Door Accessories

Note: Door stops are not fire rated. The door and frame carry the fire rating

Hold-Open Models

• Convenient knob provides simple “on-off” control of hold-open feature

• Adjustable release tension

Accessories

Shims

• Optional 1/4" thick jamb bracket shims for use with frames with blade stops

• Order as required by 21-0104 x finish with screws listed below

Machine Screws

• Used with above 590 shims up to 3/4" thick. 01-3454 x finish, 4 required. (1/4-20 x 1-1/4")

• Standard screw pack for 1-3/4" to 2" door. 21-2302 x finish

Specifications

For Doors - Exterior and interior doors from 24" to 60" wide* and for doors 1-3/4" to 2" thick standard, Available for doors up to 3-1/4" thick, use 31- option and specify thickness

Fasteners - Wood screws, machine screws, through-bolts, Mortise nuts supplied as standard for 1-3/4"– 2" thick doors. For doors more than 2" and less than 3-1/4", use 31– option and specify thickness

Options - 31- Doors 2-1/4" to 3-1/4" thick, specify door thickness, 36- Torx security machine screws for exposed screws on doors up to 2" thick. 6 per holder/stop, CPC- Clear Powder Coat, SG- MicroShield® - antimicrobial silver-based finish

Features

• BHMA Certified: All 590 and 690 series holders & stops are BHMA Grade 1 Certified

• Heavy duty architectural bronze construction

• UL Classified: The 590, 690, 1530 and 1540 stops are UL 10B and UL 10C classified as a miscellaneous fire door accessories

• Corrosion resistance: Metal construction provides corrosion resistance in a variety of conditions

• Holder Selector: 590 and 690 series holders are equipped with a turn knob to activate and deactivate the hold open function

• Zinc end caps

• Through-bolts capture channel and end caps

• Heavy duty shock spring absorbs load and gradually stops door

Aesthetics:

• Metal construction provides superior quality plated finishes

• Finished End Caps: End caps recessed into channel and finished same as channel

• Finished Rivets: Fasteners used to secure the arm to the slide and the jamb bracket are polished and finished the same as the rest of the holder

• Finished holder turn lever: SARGENT 590 and 690 holders are built with a finished holder turn knob without any exposed screws

• Finished channel corners: Corners of the channels are polished to match the rest of the arm and channel

Convenience:

• Minimal number of sizes required to cover all door widths

• Standard holder sizes based on standard door widths

• Non-handed

Innovation

• SARGENT’s revolutionary MicroShield® available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed.
