Master Code

500 User Codes

500 RFID Card/KeyFob per Lock

2 One Time User Codes

4-6 Digit Code Combination

Passage Mode

Weather Resistant

9V Battery Emergency Port

Anti-Tamper Lockout

Lock-Out Mode

Clutch Technology

Non-Handed Reversible

Proximity Card (13.56 MHz) - 2 pcs. Included

RFID Keyfob (Optional)

Mobile App for Android & Apple

Smart Connect Module Optional (Item #CR6000-BLE)

Touch Screen To Wake Up Lock

2 Year Warranty

Access Log (Audit Trail) - The ExperienSmart app features a 24/7 activity log, so you can keep track of who accessed the lock. A timestamped access log can be saved as an excel file via email.

Anti-Tamper Lock-Out - The lock will shut down for 60 seconds and not allow operation, If invalid code is entered 5 times in succession to prevent tampering.

Beep & LED Indicators - These Indicators can either be programmed for different settings. This Features is useful in making sure that every keypress was successfully entered.

Smart Connect Module (Item # CR6000-BLE) - Optional Device used for managing locks via the ExperienSmart app, 8m to 10m detection range.

Lock-Out Mode - This feature is enabled by the Master PIN Code. When enabled, It Restricts all User PIN codes and RIFD CARD / KEYFOB access except Master PIN code. The padlock icon will appear on the screen when the unit is in lock-out mode.

Low Battery Warning - The low battery icon on the screen will blink when battery power is low.

Master PIN Code - Use for programming the lock and entering Manager and User PIN codes. Can also be used to open the lock and reset to factory settings.

NFC (Near Field Communication) Interface - NFC compatible for android phones.

One-Time User PIN Code - Can only be used once. This lock can store up to 2 one-time User PIN code simultaneously.

Passage Mode - Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.

Re-Lock Time - When the code is successfully entered and the device unlocks, it will automatically relock after 5 seconds by default. Through feature settings, the re-lock time may be changed from 1 to 10 seconds..

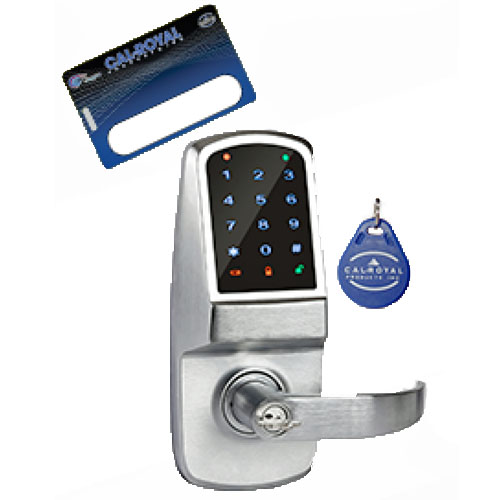

RFID Card (Standard); RFID keyfob (optional) - Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO14443A. Inductive distance up to 1 3/16”.

Touch Screen (Lock Activation) - Touch the screen to activate lock. Enter the PIN code when while the number pad is illuminated. Also same as using the RFID card/keyfob.

User PIN Code - This Feature only opens the lock by entering the code on the touch pad. It won't be able to program or change settings. This lock can accommodate up to 500 RFID Card/Keyfob and 500 User PIN codes each, 4 to 6 digit combination.

Weather Resistant - CR6100 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of 30○F ~ 150○F (-35○C ~ +66○C).
