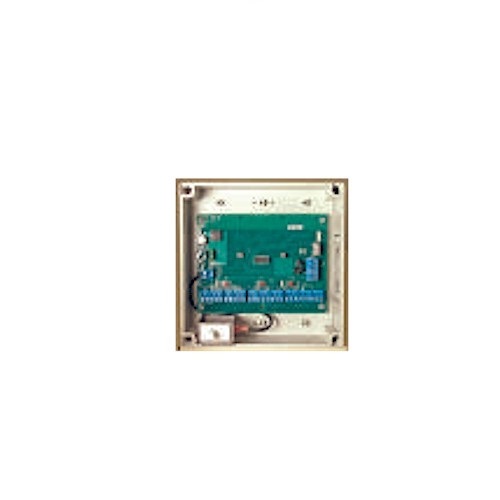

Locknetics by Schlage PIB300-2D Panel Interface Board with outdoor enclosure standard. Supports 2 Doors (AD-300 Locks).
If the system requires Wiegand or Clock & Data protocol (rather than a direct RS485 connection), the AD-Series open architecture platform connects up to two AD-300 locks to the Panel Interface Board (PIB300 - sold separately, if required) that seamlessly connects to an access control panel or reader interface board. All monitoring is captured at the remote monitoring station.
Specifications
Communication Range PIB300 to Lock, RS485: up to 4000’ PIB300 to ACP, Wiegand or Clock & Data: up to 500’
Visual/Audible 13 LEDs for Status Indicators
System Interface Wiegand or Clock & Data
Voltage Range 9.5 VDC to 26 VDC
Power Supply 12 VDC or 24 VDC
Max Current Requirements Up to 250 mA
Operating Temperature -31° to 151°F (-35° to 66°C)
Dimensions (HWD) 7.1” x 7.1” x 3.0” (18.0 cm x 18.0 cm x 7.6 cm)
Weight 1.25 lb (.57 kg)
Cable Specifications (PIB300 to ACP) 22AWG, 8 Conductor Shielded (Alpha 1298C or equivalent)
Certifications NEMA 1, 4, 4X, 6; UL 294, FCC Part 15; RoHS
PIB300-2D Locknetics Panel Interface Board
- Brand: Schlage Electronics
- Product Code: PIB300-2D
-
$470.40
