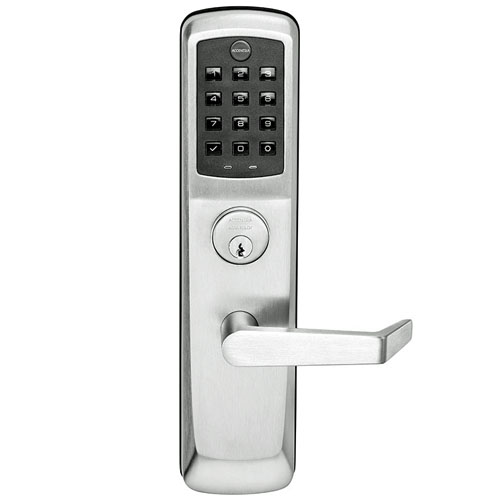

Yale AU-NTT613-NR Accentra nexTouch Rim Exit Trim with Pushbutton Keypad, No Deadbolt With Cylinder Override. Keypad Only, No Radio.
Augusta (AU) Lever, Grade 1
Non-Handed
Note: For 1 3/4" Doors Only
Compatible Exit Devices
Arrow 3880
Corbin Russwin ED5200, ED5200S
Dorma 9300
Falcon 25
Sargent 8800
Von Duprin 98, 99
Yale/Accentra 1800, 2100/2150, 6100/6150, 7100/7150
Technical Specifications
• Door Specifications: Patented
adjustable mounting posts make the nexTouch exit trim compatible with
many exit device models
• Door Thickness: 1-3/4" (44mm) door thickness standard; please specify for other door thicknesses
• Handing: Field reversible
• Cylinder: 2153 mortise cylinder standard. Accepts conventional, interchangeable
core, security and high security cylinders, and other manufacturers’
keyway cylinders
• ANSI/BHMA: Certified ANSI/BHMA A156.13 Grade 1
• UL/cUL: Functions are UL - cUL Fire Listed for use on fire doors having a rating up to and including 3-hours
• Warranty: 3-year electronic and mechanical, 1-year finish
• Power Source: Four AA alkaline batteries (included) with
optional hardwire input for 9VDC external power; 9V battery power backup
on keypad
AU-NTT613-NR Yale nexTouch Keypad Rim Exit Trim
- Brand: Yale
- Product Code: AU-NTT613-NR
-
$681.65
