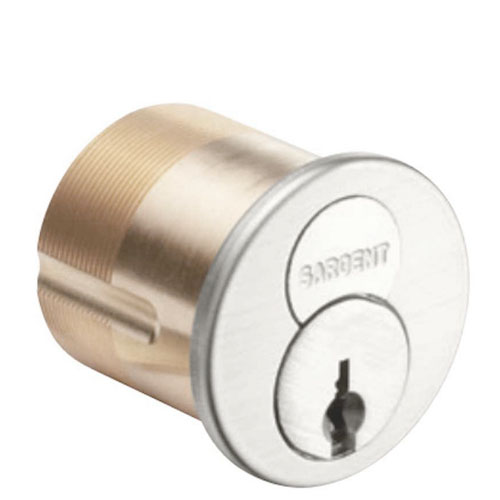

• 63-42 Sargent Mortise Cylinder Interchangeable Core - Housing w/ Core

*Actual product and finish may vary

Sargent 63-42 is a 6300 Series Large Format Interchangeable Core Mortise Cylinder w/Standard Cam (13-0664 Open Slotted Cam).

HA Keyway


• Cylinder: Solid brass 1-5/32" diameter

• Cap: Brass, bronze and stainless steel

• Furnished standard with No. 97 rosette and compression ring

• Optional Collars/Spacers available and ordered separately, refer to product catalogs for additional information

• HA Standard Keyway (Except Hotel)

• For use in Sargent 78/8250s hotel function only, “C” series keyway supplied standard, unless otherwise specified. Offered in 50- 63-43 size only (1-3/8") with 115 cam only.

• Hotel emergency key is 7269 EMK, ordered separately

• Order hotel cylinders as 50-63-43 or 50-60-43 which will include the 115 cam as standard

• Other SARGENT keyways available

• Mortise Sizes available: 63-42, 63-43, 63-44 & 63-46

• Available 6300 Mortise Cams on Pg 6

• Specify required Cam as a suffix: 63-44-105 cam

• For Standard Cam: No Suffix is required

• Order as: 63-42 x Finish

• 60-42 same as above, but supplied with plastic disposable plastic core

• Also available: 60-34 & 64-34 Rim Cylinders

*See below for a complete listing of keyways available from stock:

L – System:  LA, LB, LC, LE, LF, LG, LJ, LK, LL

H – System: HA, HB, HC, HE, HF, HG, HJ, HK, HL

R – System: RA, RB, TC, RE, RF, RG, RJ, RK, RL
