*Actual product and finish may vary

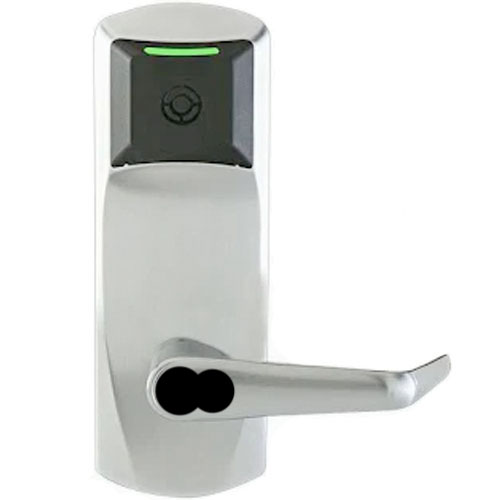

Dormakaba E79N20E35LB-F20626 E-Plex Exit Trim, Integrated RFID Electronic Lock, Long Return Outside Lever with SFIC Prep bypass less core

Exit Trim for Rim Device (No Device Included)

For Use With Precision 21 Series

RFID Version: MiFare - (Keyscan K-Secure Key or CSN with Public Key) - Command cards are designed for programming each lock or to join a network.
Must be ordered corresponding to RFID Version selected.

Door sensing: Door sensing input (door positioning switch) Door Switch not included. The pigtail will be supplied for door sensing.

Handing: Dual handed

Specifications
Description: Heavy duty, electronic lockset with clutch mechanism and built-in contactless RFID reader.
Handing: Dual handed. Field reversible levers.
Key Override: Ilco KIL cylinder, keyed different. Best (SFIC) and equivalents (core not included).
Latch: 1/2” (13 mm) Deadlatch
Door Thickness: From 1 3/8” to 2 1/2” (35mm to 66mm).
iCLASS legacy (Public Key): HID 13.56 MHz iClass Classic; HID Corporate 1000 (35, 48 bit); Keyscan 36-bit; Open format 26-bit; HID 37-bit (H10304); MiFare Classic (CSN Only)  iCLASS SEOS (Public Key): HID 13.56 MHz iClass SEOS; HID Corporate 1000 (35, 48 bit); Keyscan 36-bit; Open format 26-bit; HID 37-bit (H10304)  iCLASS SE & Legacy(Keyscan Elite Key): HID 13.56 MHz iClass Legacy; SR and SE with Keyscan Elite Key; Keyscan 36-bit  Standard Proximity(125 kHz): Keyscan 36-bit format; HID Corporate 1000 (35, 48-bit); HID 26 bit
Mifare with BLE (13.56 MHz): Keyscan K-SECURE 1K/4K (36-Bit); Keyscan Mobile Credentials (36-Bit); MiFare Classic (CSN Only)
Shipping Weight: 6 lbs. (4.54 kgs)
Housing Construction: Cast zinc alloy (outside housing, levers, and thumbturn), stainless steel inside housing.
Finish: 626 Satin Chrome
Locking options: Cyl, 2 3/4” or 2 3/8”Backset, ½” Bolt; Cyl, 2 3/4” Backset, ¾” bolt ; Mor, 1 1/4” Faceplate (FP), Utility, w or w-o deadbolt; Mor, 1” FP, LH or RH no deadbolt; Mor, *1” FP, LH or RH w/deadbolt; For Exit trim options refer to E-Plex Exit Trim in Electronic Lock Price Book.
Batteries: Alkaline batteries (4 AA). Low battery indicator in software and on lock. Battery life up to 1 year (based on optimal usage).
Programming & Audit Trail: Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Aurora software stream lock transactions in real time with on-line programming. Stand-alone lock programming and audit retrieval requires M-Unit
Programming command card: Command card set matching card technology of lock ordered is required to be purchased separately to program all locks with that same card technology (not included with lock).
Accessibility Standard/Certification: ADA compliant, BHMA/ANSI Grade 1, Florida Windstorm (mortise), UL10/UL10C, ULC S104, FCC Part 15 Class C and CE directive 2014/53/EU and industry Canada compliant.
Operating Conditions: -31°F to 149°F (-35°C to 65°C) 0% to 85% non-condensing humidity at 86°F (30°C).

The Dormakaba E79N series is a high-quality electronic door lock designed for secure and convenient access control in commercial and residential settings. This model combines advanced technology with robust construction to provide reliable security and ease of use. (Generation 1)
Key Features
• Electronic Access Control: Supports multiple authentication methods such as PIN codes, RFID cards, or key fobs, allowing flexible and secure entry options.
• Durable Build: Made with premium materials to withstand frequent use and resist tampering or forced entry.
• Easy Installation: Designed for straightforward retrofit on standard doors without requiring extensive modifications.
• Audit Trail Capability: Records access events, enabling administrators to monitor and review entry logs for enhanced security management.
• Battery Operated: Runs on long-lasting batteries, ensuring continued operation even during power outages.
• User-Friendly Interface: Equipped with an intuitive keypad and LED indicators for simple operation and status feedback.
• Compatibility: Integrates well with existing access control systems and can be connected to broader security networks if needed.
This lock is ideal for offices, apartment buildings, or any facility requiring controlled access with a balance of security and convenience. Its combination of electronic functionality and mechanical reliability ensures peace of mind and efficient management of authorized entry.
