The traditional line of Sargent overhead Holders & Stops is unsurpassed in the industry in regards to aesthetic details and quality. The 590 heavy-duty surface applied and 690 concealed heavy-duty series are designed for use on exterior doors and highly abused interior doors. The 1530 concealed series and the 1540 surface applied series are designed for use on interior doors.

All stops/holders are templated and installed for a particular degree of opening ranging between 85° to 110°. All SARGENT overhead holders/stops include a heavy duty spring designed to gradually absorb impact forces over a 3° to 9° of opening. When using holders and stops on doors opening against a wall or back to back, they should be templated/installed to eliminate the trim from coming into contact with the walls or each other.

1530 Series

• Concealed application for interior single or double acting doors opening to 110°

• Three types to choose from:

– “H” Holder; Stops and Holds doors open

– “S” Stop; Stops door only

– “F” Friction Type; Holds door open

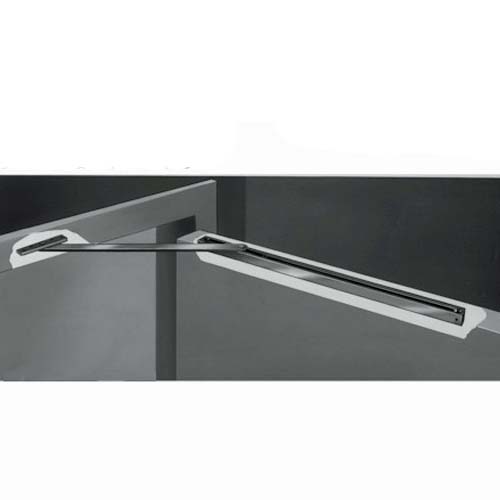

• Holder/Sto p is concealed with arm and bracket mortised into jamb

Hold-Open With Stop:

• Holds door open for a particular degree from 85° to 110°

• Hold-open feature engages and releases easily by a push or pull action

• Release tension is easily adjustable

Stop Only Type:

• Used to stop door with shock absorber spring

• Protects wall and door

• Maximum door opening 110°

Friction Type:

• Prevents unwanted movement of door

• Not for use with a door closer

• Can be held in any position up to 110°

• Friction unit is made of heavy duty brake lining type material

• Adjustable friction control for varying conditions

ANSI A156.8 Grade 1

1530F Series complies to C04531

1530H Series complies to C04511

1530S Series complies to C04541

UL Classified

• SARGENT 1530 Series stops are UL10B & 10C classified by Underwriter Laboratories as Miscellaneous Fire Door Accessories

Note: Stops are not rated. The door and frame carry the fire rating

Accessories

• Standard screw pack 21-2019 x finish

Specifications

For Doors - Interior doors 19" up to 48" wide*, 1-3/8" to 1-3/4" thick, as standard. Available for doors up to 2" thick, use 31- option and specify thickness

Fasteners Wood screws, machine screws provided as standard

Options - 31- Doors 1-7/8" to 2" thick, specify door thickness, 36- Torx Security machine screws. 6 required, CPC- Clear Powder Coat, SG- MicroShield® - antimicrobial silver-based finish
