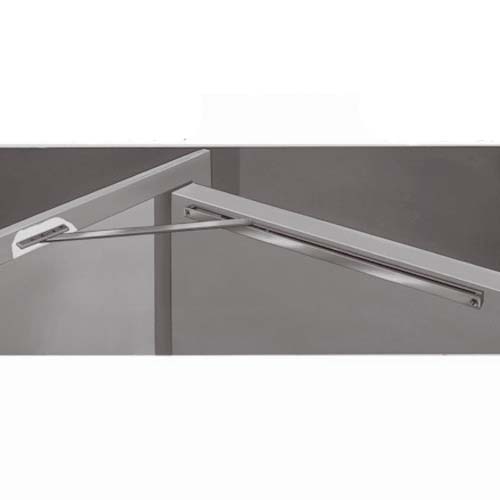

Sargent 1548S is a Surface Mount, Stop Only Overhead Door Stop for interior medium traffic doors.
For 32-5/8" to 40" Door Width.The traditional line of Sargent overhead Holders & Stops is unsurpassed in the industry in regards to aesthetic details and quality. The 590 heavy-duty surface applied and 690 concealed heavy-duty series are designed for use on exterior doors and highly abused interior doors. The 1530 concealed series and the 1540 surface applied series are designed for use on interior doors.
All stops/holders are templated and installed for a particular degree of opening ranging between 85° to 110°. All SARGENT overhead holders/stops include a heavy duty spring designed to gradually absorb impact forces over a 3° to 9° of opening. When using holders and stops on doors opening against a wall or back to back, they should be templated/installed to eliminate the trim from coming into contact with the walls or each other.
1540 Series
• Surface application for interior single acting doors. Three types to choose from:
– “H” Holder; Stops and Holds doors open
– “S” Stop; Stops door only
– “F” Friction Type; Holds door open
• Holder/Stop is surface mounted with arm and bracket attached to top jamb
Hold Open With Stop Type:
• Holds door open for a particular degree from 85° to 110°
• Hold-open feature engages and releases easily by a push or pull action
• Release tension is easily adjustable
Stop Only Type:
• Used to stop door with shock absorber spring
• Protects wall and door
• Maximum door opening 110°
Friction Type:
• Prevents unwanted movement of door
• Not for use with a door closer
• Can be held in any position up to 110°
• Friction unit is made of heavy duty brake lining type material
• Adjustable friction control
ANSI A 156.8 Grade 1
1540 F Series complies to C05531
1540 H Series complies to C05511
1540 S Series complies to C05541
UL Classified
• SARGENT 1540 Series stops are UL10B & 10C classified by Underwriter Laboratories as Miscellaneous Fire Door Accessories
Note: Stops are not rated. The door and frame carry the fire rating
Accessories
Shims
• Optional 1/4" thick jamb bracket shims for use with frames with blade stops.
Machine Screws
• Order as required by 21-0198 x finish
• Used with above shims up to 3/4" thick. Four required per overhead. Order by 01-3436 x finish (12-24 x 1-1/4")
• Standard screw pack 21-2031 x finish
Specifications
For Doors - Interior doors 18-1/2" up to 48" wide*, 1-3/8" to 1-3/4" thick standard, Available for doors up to 2-1/4" thick, use 31- option and specify thickness
Options - 31- Doors 1-7/8" to 2-1/4" thick, specify door thickness, 36- Torx Security machine screws. 6 required, CPC- Clear Powder Coat, SG- MicroShield® - antimicrobial silver-based finish
