*Actual product and finish may vary

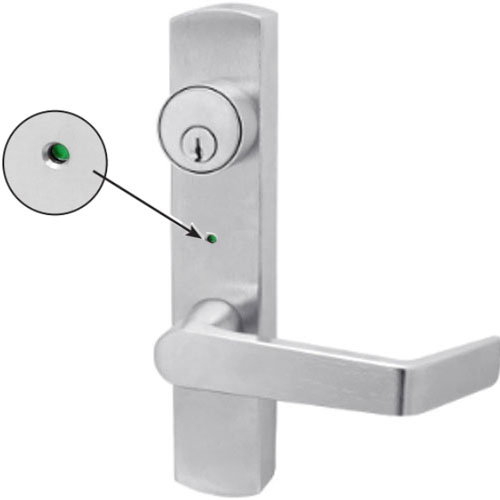

Cal-Royal ESC45-05 Storeroom Exit Device Trim, Escutcheon Clutch Lever w/Cylinder for Cal-Royal 45 series exit devices - Clutch Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked.

ANSI Function (09)

Trim Selection
Clutch Lever Escutcheon
Construction
• Non-Ferrous Alloy Material
• Clutch Mechanism
• Double Heavy Duty Spring Support to prevent sagging and enhance operation
• Grade 1, Thru-Bolted design. Non-Handed design.
• Easily field reversible
• Includes Adjustable Heavy Duty Steel Spindle.
• Available for Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices
• Standard 6-Pin Schlage “C” Mortise Cylinder included

Keyway: 6-Pin solid brass “C” keyway Mortise Cylinder standard.
Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A,
Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

Door Thickness
• Standard 1 ¾” to 2 ¼”. Optional 1 ⅜”.
• Use Adjustable Spindle for 1 ¾”, 2, 2 ¼” door thickness.
• Spindle for 1 ⅜” door thick also included in packaging.

Escutcheon Dimensions
• 1 ⅝” width x 8 ⅝” length
• Lever length: 5”
