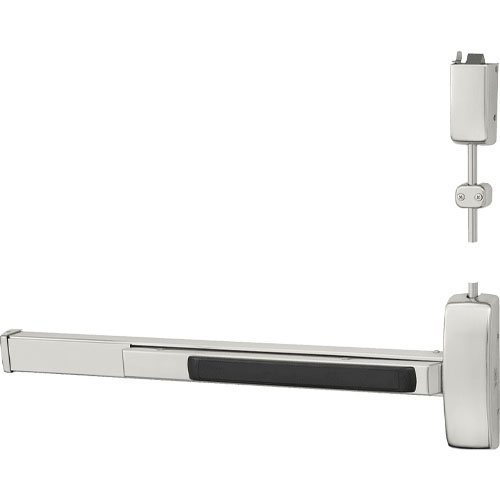

SARGENT manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation and are perfect for applications such as commercial office buildings, medical and educational institutions.

All devices are less trim.

Features

• Single point top latching
• Top latchbolt projection adjustable through center case
• Devices are ANSI A156.3 - 2008 Grade 1
• UL Fire and Panic listed

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

• Tripping potential removed - no bottom strike
• Rods are 1/2" (13mm) brass, bronze or stainless steel

Specifications

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile
  with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths:
  E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door;
  F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
  J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door;
  G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

• Strike: 646 Top Strike (Panic and Fire Rated)
• Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
• Electric Options: AL-alarm, PL-SARGuide photoluminescent coated, BT-Beacon, TL- SARGuide illuminated touchpad, 53- LX latchbolt monitor, 54- Outside lever monitoring, 55-Request-to-exit signal-rail monitoring, 56- ELR remote Latch retraction, 57- Delay egress and electromagnets 58-Electric dogging
• Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
• Latch Bolt: Stainless Steel
• Device Centerline from Finished Floor: 41” (1041 mm) for standard applications
• Door/Opening Height: Must be specified- 120" (3048mm) Max Door Opening
• Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)

Options

Cylinder Dogging Kits

Electric Latch Retraction

Signal Switch in Rail

AL-Retrofit Kits

Available Trim Options

706 ETL

713 ETL

715 ETL

NB306

NB313

Freewheeling Trim

740 ETL

743 ETL

746 ETL
