*Actual product and finish may vary

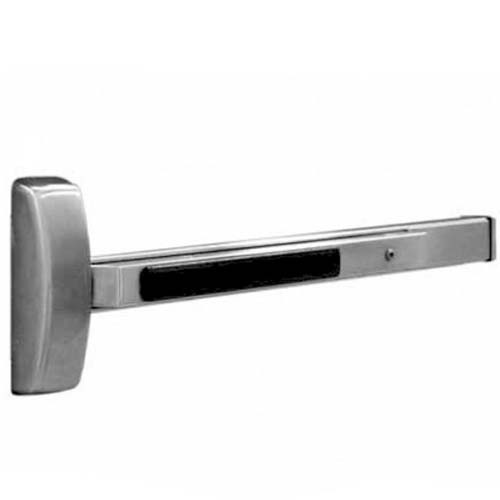

Sargent WD8613-G Wide Stile Concealed Vertical Rod exit device 48”, Less Trim for door widths 43" to 48" (Hurricane-Resistant) for standard width single or double wood doors.

All devices are less trim.

Sargent manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation and are perfect for applications such as commercial office buildings, medical and educational institutions.

Features

Designed for standard width stile applications on wood doors
Concealed rods for security and aesthetics
Single and double door applications
Specify NB- for less bottom rod
Devices are ANSI A156.3 – 2008 Grade 1
The standard MD8600 is UL Certified to ZHEM.R21744 and FL2998-R2
UL Fire and Panic listed

Specifications

Door Types: Wood 1-3/4"(44mm) minimum thickness; for doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31-option 4-1/2" (114mm) minimum stile width
Door Widths:
E Rail - 24" to 32" No cutting required for 32" door;
F Rail - 33" to 36" No cutting required for 36" door
J Rail - 37" to 42" No cutting required for 42" door;
G Rail - 43" to 48" No cutting required for 48" door

Strike: 650 Top Strike & 606 Bottom Strike (Panic & Fire Rated)
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
Electric Options: AL-alarm, PL-SARGuide photoluminescent coated, BT-Beacon, TL-SARGuide illuminated touchpad, 53-LX latchbolt monitor, 54-Outside lever monitoring, 55-Request-to-exit signal-Rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & electromagnets, 58-Electric dogging, 59-Electroguard-self contained delayed egress (NB-excluded)
Mounting Fasteners: Supplied standard with wood screws
Top bolt: Stainless Steel
Device Centerline from Finished Floor: 41” (1041 mm) for standard applications
Door/Opening Height: Must be specified - 108" (2743mm) Max Door Opening
Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)

Options

Cylinder Dogging Kits

Electric Latch Retraction

Signal Switch in Rail

AL-Retrofit Kits

Available Trim Options

706 ETL

710 ETL

713 ETL

715 ETL

106

113
