It has 6 functions determined by configured trim and the chassis mounted unit construction assures easy installation and maintenance.

All devices are less trim.

Features

• Rugged exit device in surface vertical rod and rim designs
• Available in five different functions
• UL Listed
• UL Listed to Canadian safety standards

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

• Available as Fire Exit Hardware (12-)
• Chassis mounted unit construction assures easy installation and maintenance
• Tapered push rail and angled covers
• Steel end caps and covers
• Meet ANSI/BHMA Standard 156.3, Grade 1

Specifications

For Doors: 1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door application. 3-1/2" (89mm) minimum stile width required for double door application

Outside trim: 28 series lever &rose trims, GTB Pulls & Plates, OB knob trims & Thumb Piece trims

Mounting: Furnished standard with wood and machine screws. Available with thru bolts and mortise nuts

• Cover : steel
• Chassis : Nonferrous alloy
• Rail Assembly : Roll formed steel
• End Cap: steel
• Hand: Reversible. Device is packed standard LHRB
• Latchbolt : Brass
• Strikes: 646 Top Strike (Panic &Fire), 655 Bottom Strike (fire), 624 Bottom Strike (panic)
• Dogging Feature: Allen-type key furnished standard (non fire rated devices only)

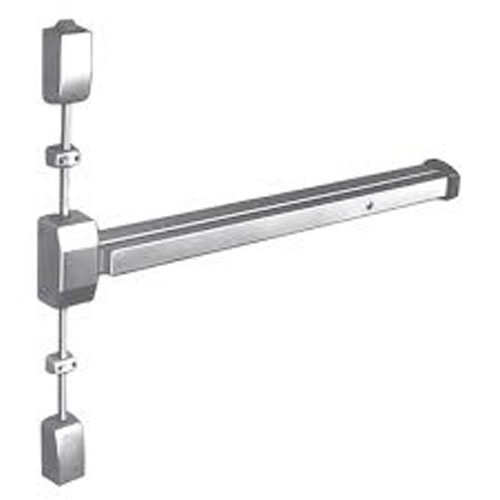

The 2727/NB-2727 Multi-function SVR Exit Device is the perfect stocking device.

• 6 functions determined by trim selected

• Device & trim sold separately; easy to mix and match

• 4 available trim designs

Order as an 2727 followed by rail size, opening, AFF and finish
