*Actual product and finish may vary

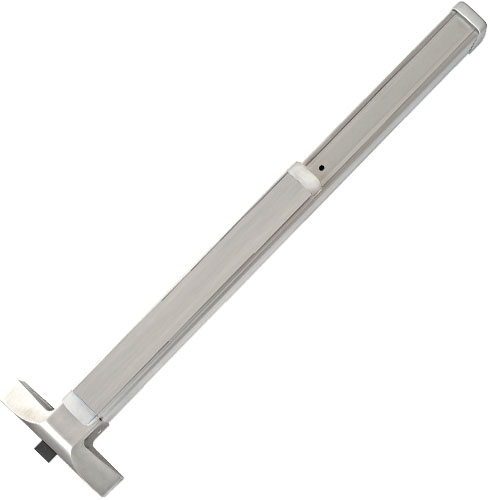

N-GLS7700EO36 Cal-Royal Narrow Stile Rim Exit Device Grade1 for Wood, Metal or Aluminum Glass doors with 1 ¾” minimum stile width, 1 ¾” thickness for single or double door application. Narrow stile Panic hardware for storefront doors with glass.
Americans with Disability Act (ADA) compliant. 5 lbs force
Meets The Buy American Act
Lifetime WarrantyDimensions
MODEL ACTUAL LENGTH MAX CUT DOWN DOOR SIZE
N-GLS7700EO36 35” 10” 26” to 36” door width
N-GLS7700EO48 46 3/4” 13” 35” to 48” door width
Specifications
For Doors - Wood, Metal or Aluminum Glass doors with 1 ¾” minimum stile width, 1 ¾” thickness for single or double door application
Chassis - Steel Material
Cover - Zinc Material
Mounting - Furnished with wood and machine screws. Thrubolts available upon request.
End Cap - Aluminum Material
Alarm - Available for 36” bar only. Use PART# N48ALRM77
Hand - Non-handed
Latch Bolt - Stainless steel ¾” throw
Spring - Steel Material
ANSI Standard - A156.3, Grade 1
Rail Assembly - Aluminum Material
Strike - 246 (Copper), Optional 247 Strike (Copper)
Dogging Feature - Allen-type key furnished standard.
Cylinder Dogging kit available for 36” bar only. Use PART# 48CD7700
Mullion - Available
UL and ULC Listed - N-GLS7700 Series for Panic & Safety, N-FGLS7700 Series for Fire Exit hardware
for all types of 4’ x 8’ single doors and 8’ x 10’ double doors for up to 3 hour fire
labeled installations. Conforms to ANSI/UL 10C, ANSI/UL 305 standards.
Finish - Architectural plated finishes
Electronic Functions - ELR (Electrified Latch Retraction) available for both 36” and 48” push bar.
DE (Delayed Egress) available for 36” bar only. Use PART# DEKIT48
Push rail height to finished floor 41” (1041 mm) at center
Push rail projection:
Neutral - 3 5/8” (92 mm)
Depressed - 2 7/8” (73 mm)
Center Case - 8” x 3” x 2 3/8” (203 mm x 76 mm x 60 mm)
N-GLS7700EO36 Cal-Royal Narrow Stile Rim Exit Device Grade1 Exit Only
- Brand: Cal-Royal
- Product Code: N-GLS7700EO36
-
$473.04
