Specifications

For Doors - Wood, Metal or Aluminum Glass doors with 1 ¾” minimum stile width, 1 ¾” thickness for single or double door application

Chassis - Steel Material

Cover - Zinc Material

Mounting - Furnished with wood and machine screws. Thru-bolts available upon request.

End Cap - Stainless Steel Material

Alarm - Not Available

Hand - Non-handed

Latch Bolt - Stainless steel ¾” throw

Spring - Steel Material

ANSI Standard - A156.3, Grade 1

Rail Assembly - Stainless Steel Material

Strike - 246 (Copper), Optional 247 Strike (Copper)

Dogging Feature - Allen-type key furnished standard. Optional Cylinder Dogging Kit not available.

Mullion - Available

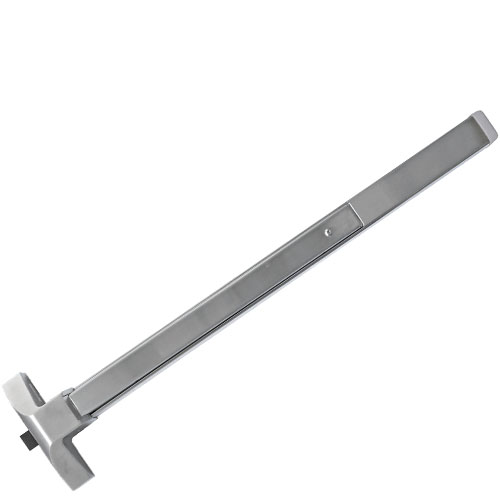

UL and ULC Listed - N-GLS9800 Series for Panic & Safety, N-FGLS9800 Series for Fire Exit hardware
for all types of 4’ x 8’ single doors and 8’ x 10’ double doors for up to 3 hour fire
labeled installations. Conforms to ANSI/UL 10C, ANSI/UL 305 standards.

Electronic Functions - ELR (Electrified Latch Retraction) available for both 36” and 48” push bar.

Push rail height to finished floor 41” (1041 mm) at center
Push rail projection:
Neutral - 2 1/2” (64 mm)
Depressed - 1 3/4” (45 mm)
Center Case - 8” x 3” x 2 3/8” (203 mm x 76 mm x 60 mm)
